LPC SERIES

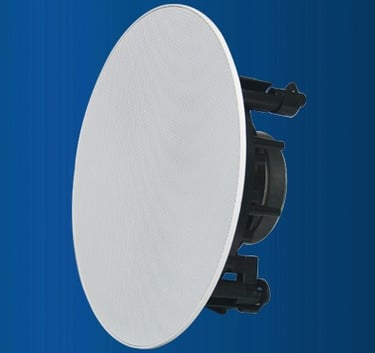

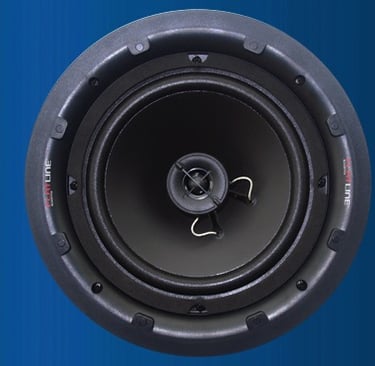

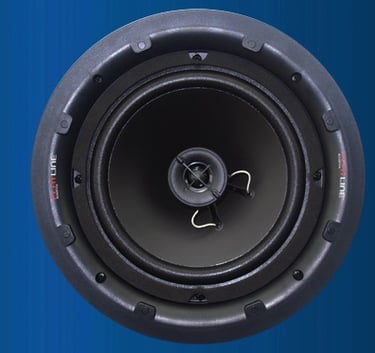

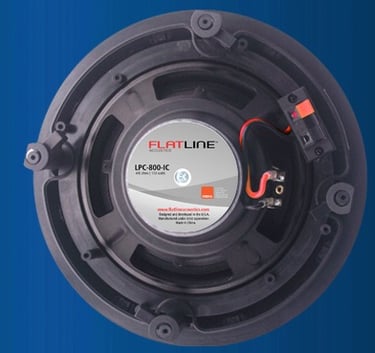

LPC-800-IC

Technical Specification:

Woofer : 8″, sickness PP cone with mica, UV treated foam surround, 1″ voice coil
Tweeter : 19mm mylar dome, ferro-fluid cooled, neodymium magnet
X-over : capacitor on tweeter section
Frequency response : 45Hz-22KHz
Sensitivity : 89dB at 1W/1M
Recommended amplifier power : 10 - 50 watts RMS, 100 watts max peak
Impedance : 8 ohm
Spring loaded terminals
Cut out size : 9.5″
Weight (pair pack) : 8.8 lbs
Depth : 3.35″
Carton dimensions (pair pack) : 9.5″(H) X 11″(W) X 11.6″(L)

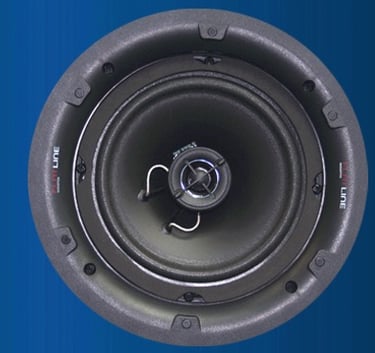

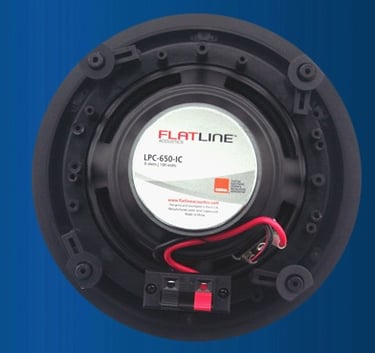

LPC-650-IC

Technical Specification:

Low profile baffle, help 3.8mm grille, pharm trim look
Configuration : Coaxial 2 way 6.5”recess flush mount speaker
Woofer: 6.5″ PP cone with Mica,1”voice coil,UV treated foam surround
Tweeter: 13mm Mylar dome, Capacitor protected
Frequency Response: 55Hz ~ 22KHz
Sensitivity: 88dB at 1w/1m
Power Handling: 10-80 watts RMS, 125 watts max peak
Nominal Impedance: 8 ohms
Connection terminals: Spring Loaded
Grille: 3.8mm Low profile treated steel , magnetic attachment
Cutout hole size: 8.03” (204mm)
Speaker diameter with grille fitted: 8.97” (228mm)
Depth : 2.95” (75mm)
Weight: Pair packed – 6.6 lbs (3kgs)
Pair Pack Carton Dimensions: 301mm x 276mm x 302mm
Cutout template included
100 volt line system capable with *optional TS-100-8 Line transformer unit
