LPS SERIES

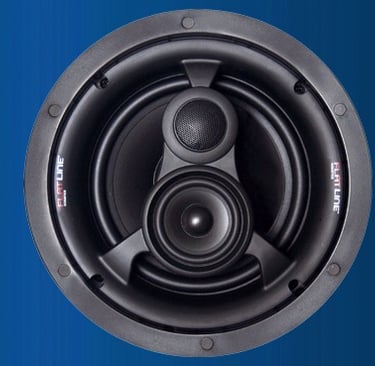

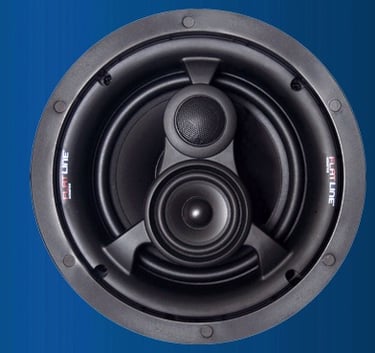

LPS-8300-IC

Technical Specification:

Baffle low profile- Black ABS – Neodymium magnets for grille capture.
Grille low profile- 5mm trim ring- metal, price power coated
Woofer : 8″, story PP cone with mica, information pills rubber surround, 25 oz magnet, 1.25″ voice coil, vented pole piece
4ohm/8ohm switchable on PCB
Midrange : 3″ PP cone with mica, rubber surround
Tweeter : 1″ mylar dome, swivel 30 degrees, ferro-fluid cooled, neodymium magnet, wide dispersion
X-over : FR4 PCB board, 12dB woofer section, 12dB midrange section, 12dB tweeter section
Separate polymide auto protective reset switch for tweeter and midrange
Gold plated terminal posts will accept 14AWG wire
4ohm/8ohm switchable on PCB
Frequency response : 40Hz-22KHz
Sensitivity : 89dB
Recommended amplifier power : 10- 80 watts RMS, 125 watts max peak
Impedance : 4ohm/8ohm selectable on PCB
Cut out size : 9 5/8″
Mounting Depth : 5.18″
Weight (single speaker) : 6.6 lbs
Dimensions (pair pack) : 18.15″(H) X 14.06″(W) X 14.53″(L)
cut out template included

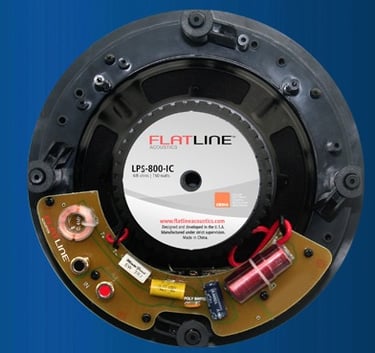

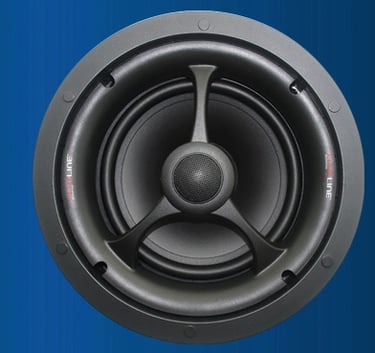

LPS-800-IC

Technical Specification:

Baffle low profile- Black ABS – Neodymium magnets for grille capture.
Grille low profile- 5mm trim ring- metal, information pills power coated
Woofer : 8″, approved woven PP cone, ailment 1.25″ voice coil, 25 oz magnet, bumped back plate, vented pole piece
Tweeter : 1″ silk dome, ferro-fluid cooled, 30 degree swivel and pivot, neodymium magnet
X-over : FR4 board with18dB per octave crossover for tweeter and woofer sections
4ohm/8ohm switchable on PCB
Polyimide switch-auto protect reset switch, over power protection for tweeter
16AWG wire connection to woofer section
Gold plated terminal posts will accept 14AWG wire
Frequency response : 40Hz-22KHz
Sensitivity : 89dB 1W/1M
Recommended amplifier power : 10- 80 watts RMS, 125 watts max peak
Impedance : 4ohm/8ohm selectable on PCB
Cutout size : 9 5/8″
Mounting Depth : 5.18″
Weight (Single speaker) : 5 lbs
Carton dimensions (pair pack) : 13″(H) X 12.2″(W) X 17.4″(L)
cut out template included
-301 stainless steel mounting hardware

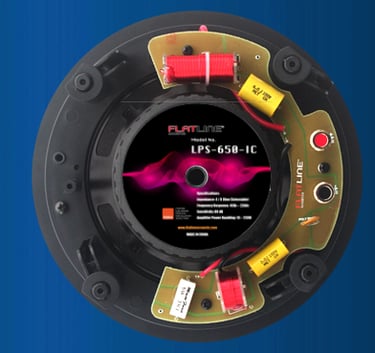

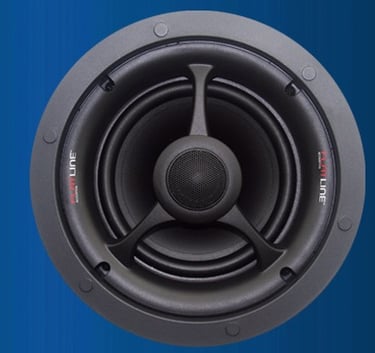

LPS-650-IC

Technical Specification:

Baffle low profile- Black ABS – Neodymium magnets for grille capture.
Grille low profile- 5mm trim ring- metal, order power coated
Woofer : 6.5″, PP cone with mica, rubber surround, 22 oz magnet, 1″ voice coil, vented pole piece
Tweeter : 1″ mylar dome, swivel 30 degrees, ferro-fluid cooled, neodymium magnet, wide dispersion
X-over : FR4 PCB
board, 12dB woofer section, 12dB tweeter section
Polymide auto protective reset switch for tweeter
Gold plated terminal posts will accept 14AWG wire
4ohm/8ohm switchable on PCB
Frequency response : 45Hz-22KHz
Sensitivity : 88dB 1W/1M
Recommended amplifier power : 10- 50 watts RMS, 125 watts max peak
Impedance : 4ohm/8ohm selectable on PCB
Cut out size : 8″
Mounting depth : 4.43″
Weight (single speaker) : 4.1 lbs
Carton dimensions (pair pack) : 12.28″(H) X 12.80″(W) X 10.94″(L)
cut out template included
