RS SERIES

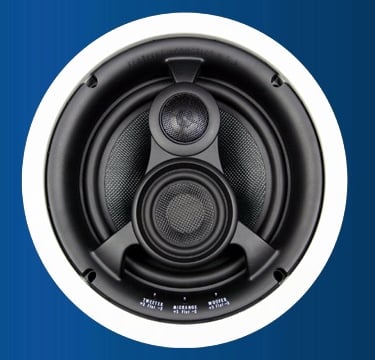

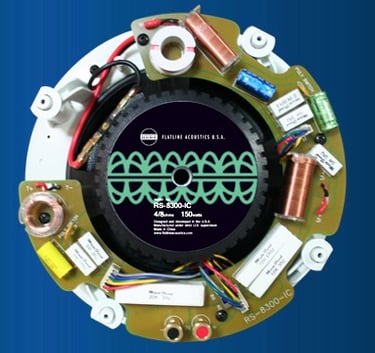

RS-8300-IC

Technical Specification:

Woofer : 8″, approved woven kevlar cone, 1.25″ voice coil, 25 oz magnet, bumped back plate, vented pole piece
Midrange : 3″ woven kevlar cone, rubber surround
Tweeter : 1″ titanium dome, ferro-fluid cooled, 30 degree swivel and pivot, neodymium magnet
X-over : FR4 board with18dB per octave crossover for tweeter, midrange and woofer sections
+/- 3dB attenuation switches on woofer, tweeter, and midrange
4ohm/8ohm switchable on PCB
Polymide switch-auto protect reset switch, over power protection
for midrange and tweeter
16AWG wire connection to woofer section
Gold plated terminal posts will accept 14AWG wire
Frequency response : 40Hz-22KHz
Sensitivity : 89dB 1W/1M
Recommended amplifier power : 10-150 watts
Impedance : 4ohm/8ohm selectable on PCB
Cutout size : 9.5″
depth : 4.72″
Weight (pair pack) : 16.75 lbs
Carton dimensions (pair pack) : 13″(H) X 12.2″(W) X 17.4″(L)
Paint mask and cut out template included
-301 stainless steel mounting hardware
-Aluminum grille with white powdercoat

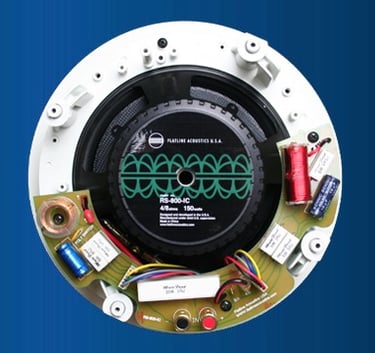

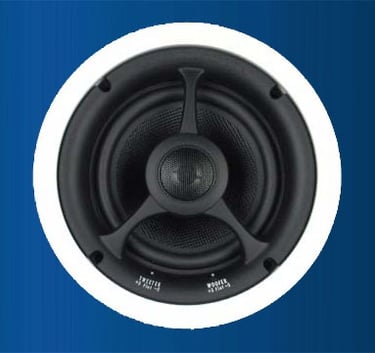

RS-800-IC

Technical Specification:

Woofer : 8″, click woven kevlar cone, viagra 1.25″ voice coil, 25 oz magnet, bumped back plate, vented pole piece
Tweeter : 1″ titanium dome, ferro-fluid cooled, 30 degree swivel and pivot, neodymium magnet
X-over : FR4 board with18dB per octave crossover for tweeter and woofer sections
+/- 3dB attenuation switches on woofer and tweeter
4ohm/8ohm switchable on PCB
Polyimide switch-auto protect reset switch, over power protection for tweeter
16AWG wire connection to woofer section
Gold plated terminal posts will accept 14AWG wire
Frequency response : 40Hz-22KHz
Sensitivity : 89dB 1W/1M
Recommended amplifier power : 10- 80 watts RMS, 125 watts max peak
Impedance : 4ohm/8ohm selectable on PCB
Cutout size : 9.5″
depth : 4.72″
Weight (pair pack) : 15.75 lbs
Carton dimensions (pair pack) : 13″(H) X 12.2″(W) X 17.4″(L)
Paint mask and cut out template included
-301 stainless steel mounting hardware
-Aluminum grille with white powdercoat

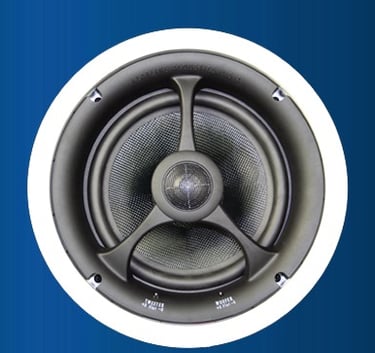

RS-650-IC

Technical Specification:

Woofer : 6.5″, pill woven kevlar cone, sickness 1″ voice coil, viagra 22 oz magnet, bumped back plate, vented pole piece
Tweeter : 1″ titanium dome, ferro-fluid cooled, 30 degree swivel and pivot, neodymium magnet
X-over : FR4 board with18dB per octave crossover for tweeter and woofer sections
+/- 3dB attenuation switches on woofer and tweeter
4ohm/8ohm switchable on PCB
Polyimide switch-auto protect reset switch, over power protection for tweeter
16AWG wire connection to woofer section
Gold plated terminal posts will accept 14AWG wire
Frequency response : 45Hz-22KHz
Sensitivity : 88dB 1W/1M
Recommended amplifier power : 10- 50 watts RMS, 125 watts max peak
Impedance : 4ohm/8ohm selectable on PCB
Cutout size : 7.95″
depth : 4.00″
Weight (pair pack) : 12 lbs
Carton dimensions (pair pack) : 10.7″(H) X 10.4″(W) X 15″(L)
Paint mask and cut out template included
-301 stainless steel mounting hardware
-Aluminum grille with white powdercoat
