SPEAKER CABLE & ACCESSORIES

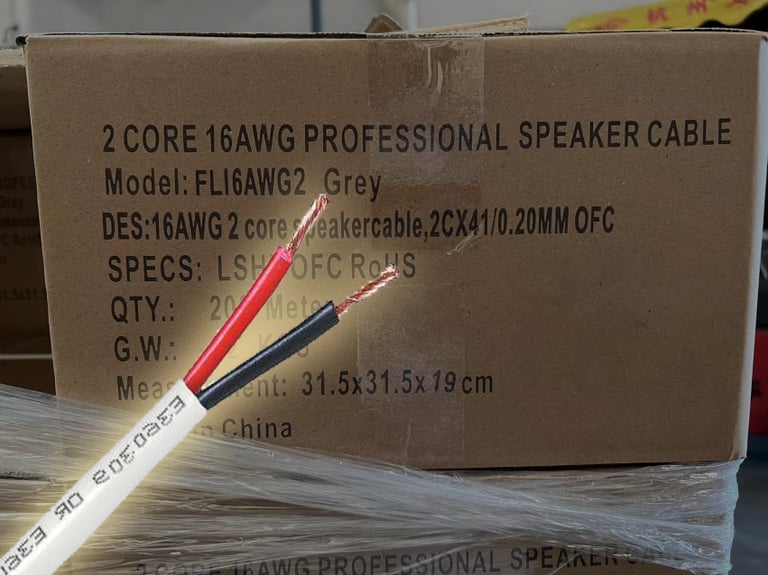

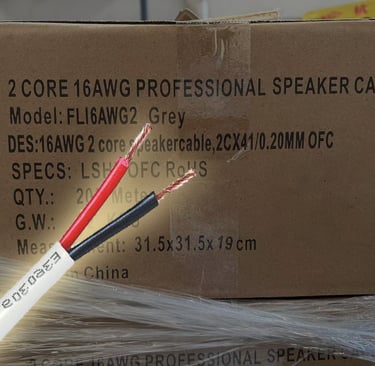

SPEAKER CABLE FL16AWG2

Technical Specification

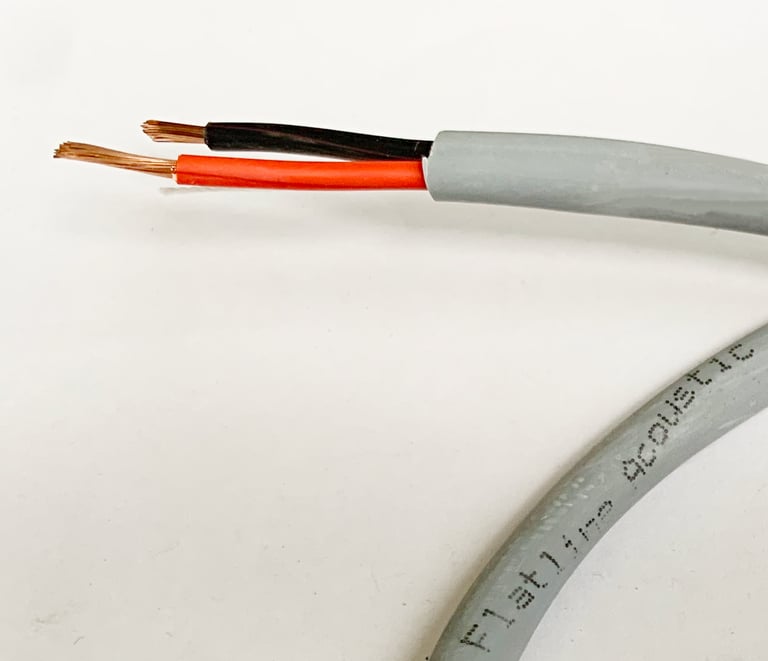

16 AWG 2 cores professionals speaker cable

Anti-Fire Low Smock Zero Halogen - LSZH - 200 Meter per role - wooden roller
1. Conductor:
Material: OFC

AWG: 16

No./mm: 41/0.20mm+0.001/-0.008

Core Number: 2

2. Insulation

Material: LSZH

Diameter: 2.4(+/-0.20)mm

Color: red/black

3. Jacket

Material: LSZH

Diameter: 6.1mm(+/-0.20)mm

Color: Grey( PANTONE 421C)

4. Electrical Characteristics (20℃)

Max.Conductor DC Resistance at 20℃(Ω/100m): 13.7

Max.Insualtion DC Resistance at 20℃(MΩ*M): 200

Rated Temperature(℃): 80

Rated Voltage(V): 300
